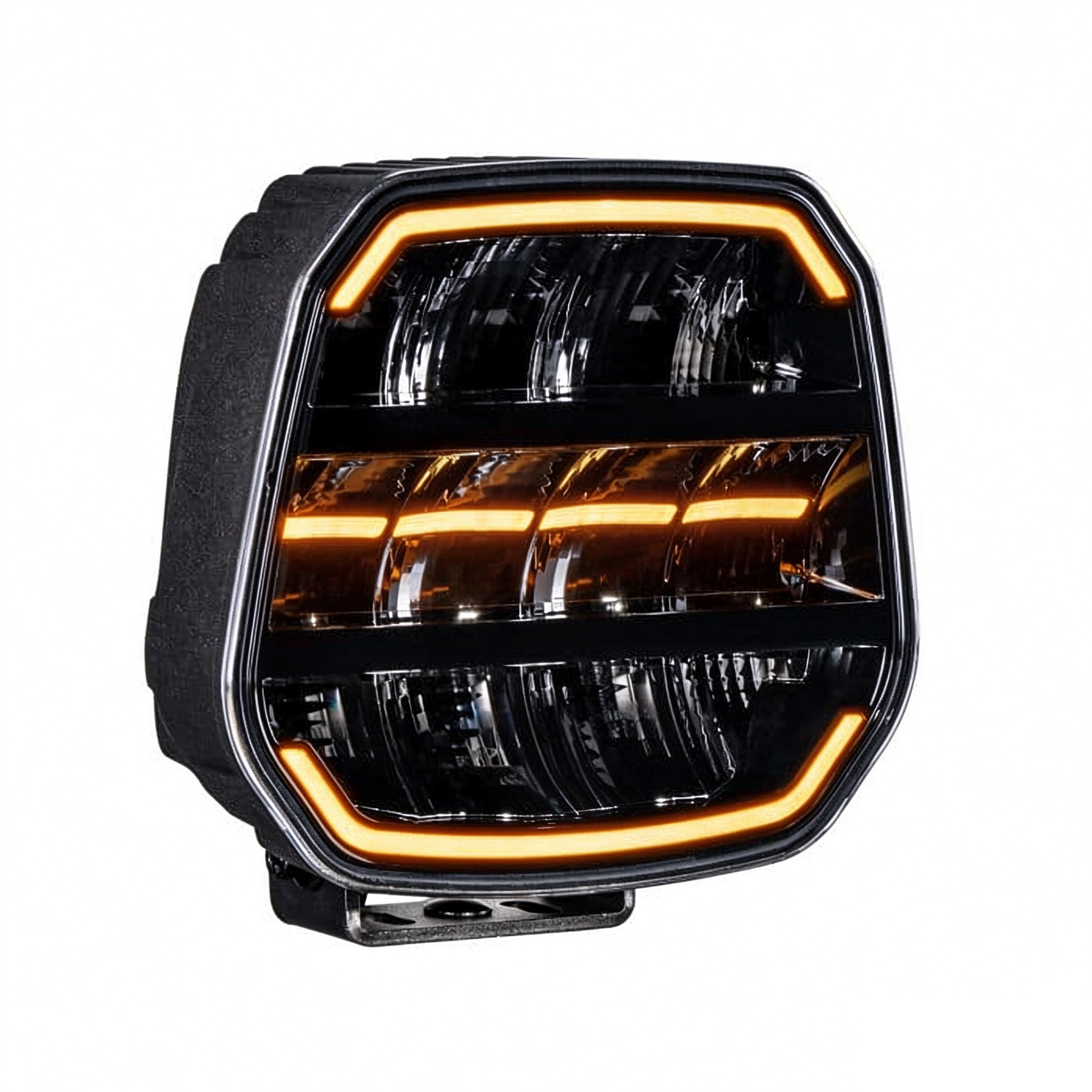

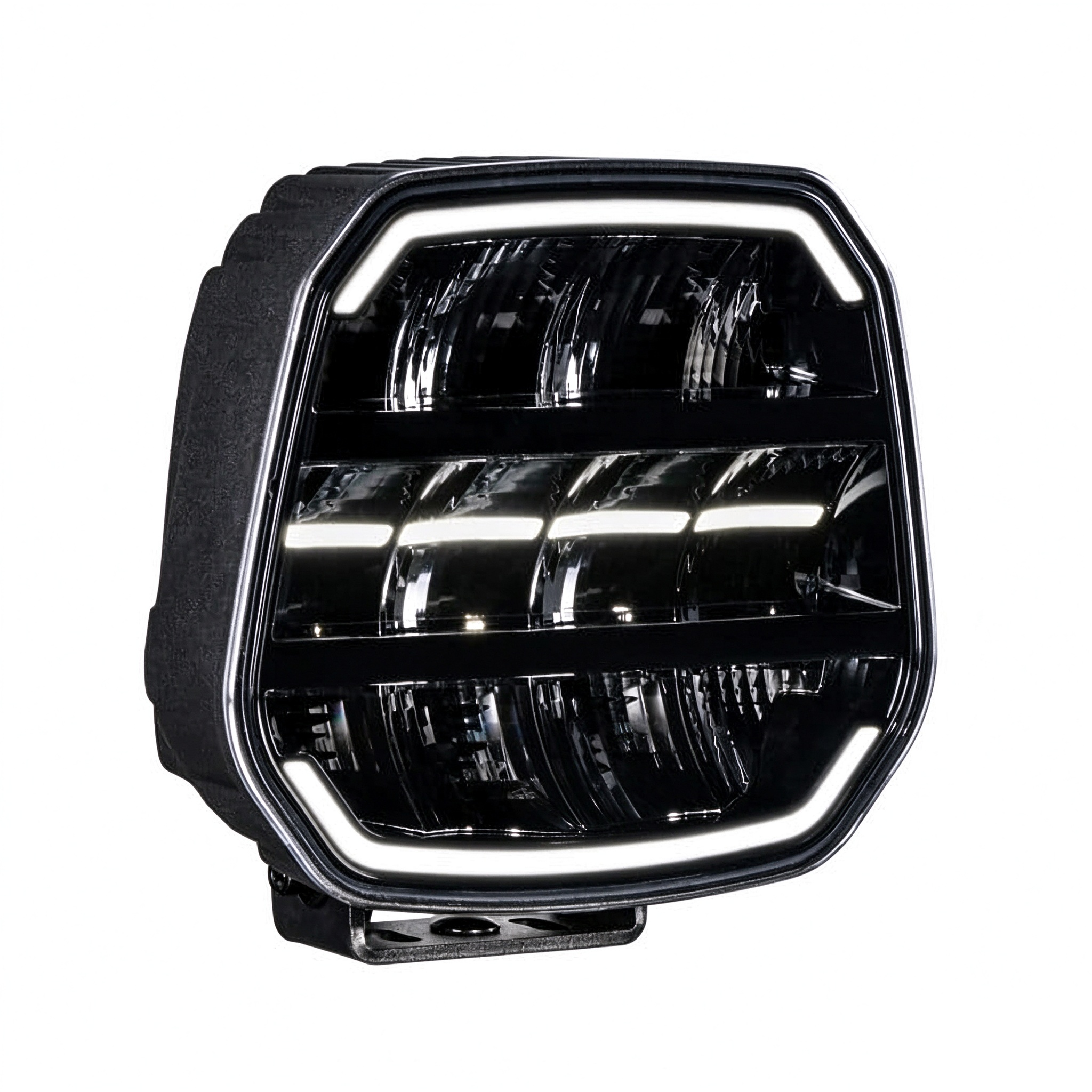

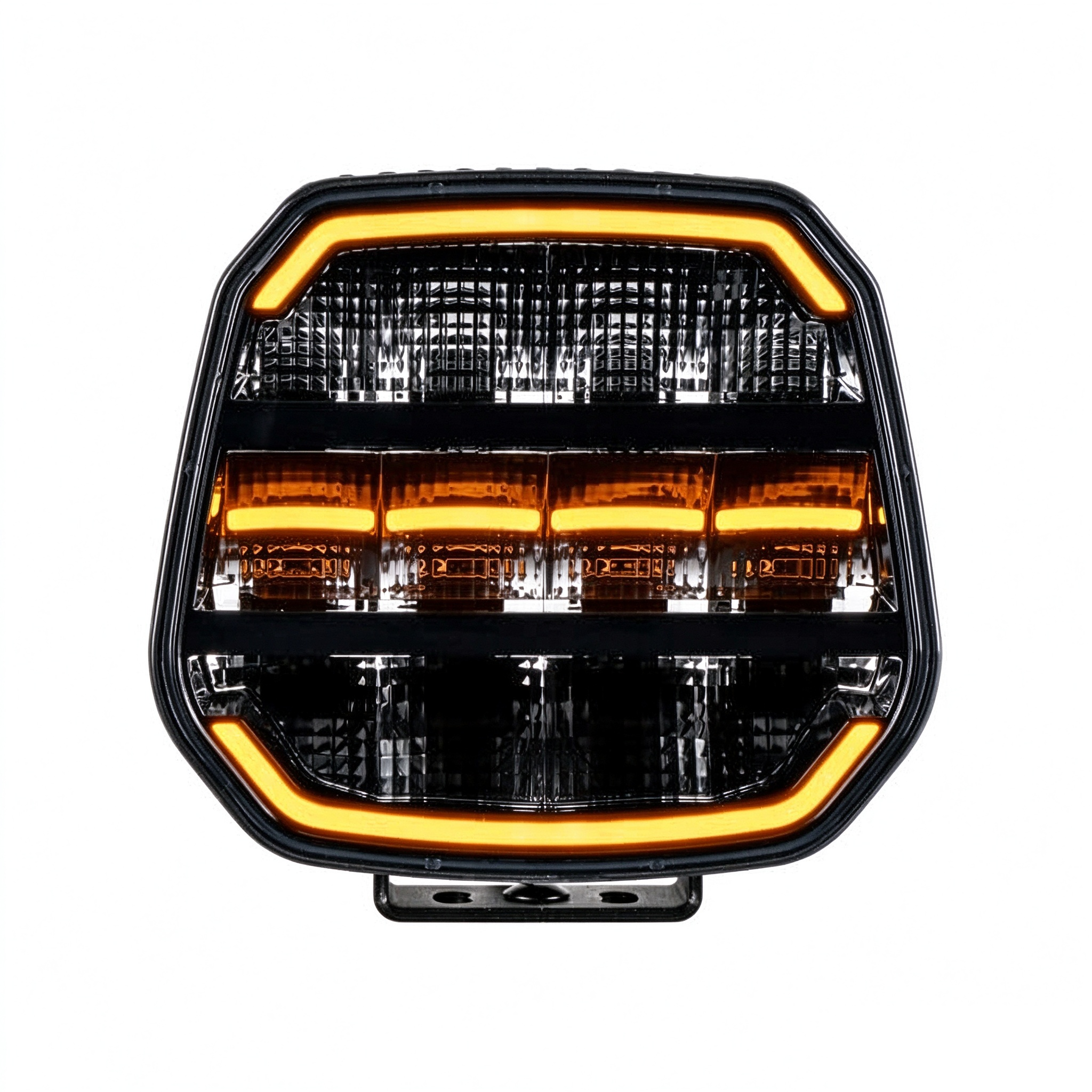

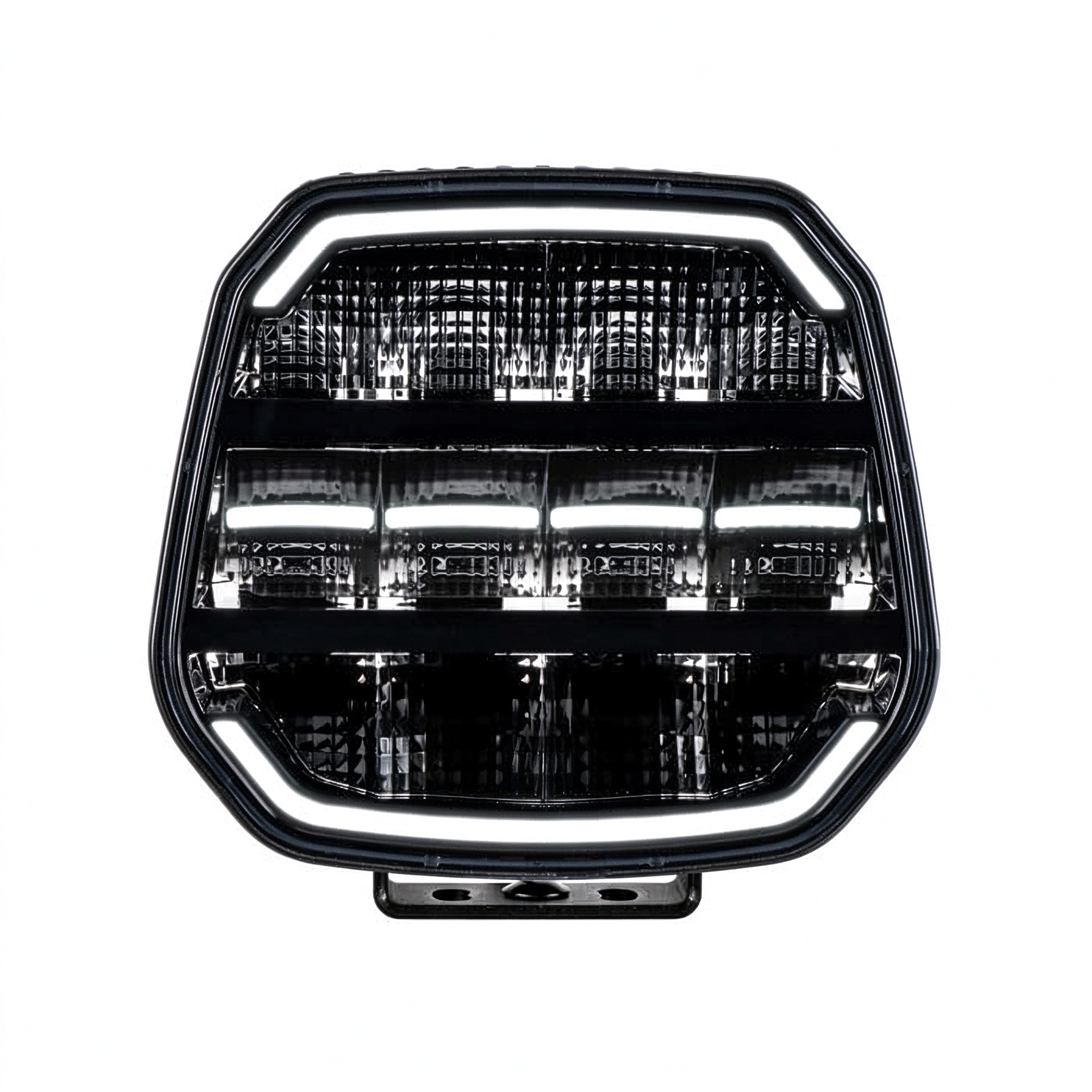

GYD9CC80 Selectable position light with dynamic activation (yellow-orange or xenon white, connect the color of your choice) Range E-approved mode: 359 m (1 lux) Range in Powerboost mode: 533 m (1 lux) Driving beam pattern Powerboost mode: 11 500 lumens (theoretical), 8 200 lumens (actual) Neutral white light: 5000K ETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespan Side-reflecting optical system Pressure equalization membrane Aluminum heat sink Adjustable stainless steel mount Polycarbonate lens Technical data: 120W (12 x 10 LED) IP69K (water and dust proof) Cable with 4-pin DT Connector Voltage: 9-36 V Load in E-Approved Mode: 3,2A @ 12V and 1,6A @ 24V (high beam only, no position light) Load in High Beam Powerboost Mode: 10,1A @ 12V and 4,6A @ 24V (high beam only, no position light) Dimensions & Weight: Width: 180 mm Height: 177 mm (incl bracket) Depth: 70 mm Weight: 1,36 kg Cable instructions (detailed instructions included) Red: Auxiliary light (+) Black: Auxiliary light / Position light (- Ground) White: Position light (+) White light Yellow: Position light (+) Yellow-orange light INQUIRY PRODUCT DETAIL LED Auxiliary Light 7" Share: PREV： GYD9A95 NEXT： GYD9CB71 RELATED PRODUCTS GYD9CW10 GYD9CS48B GYD9CR24B GYD9IS36B GYD9HS36B GYD9BS48B GYD9ES48B GYD9CB71
