GYD9CB71

• Strobe light with five different flash patterns.

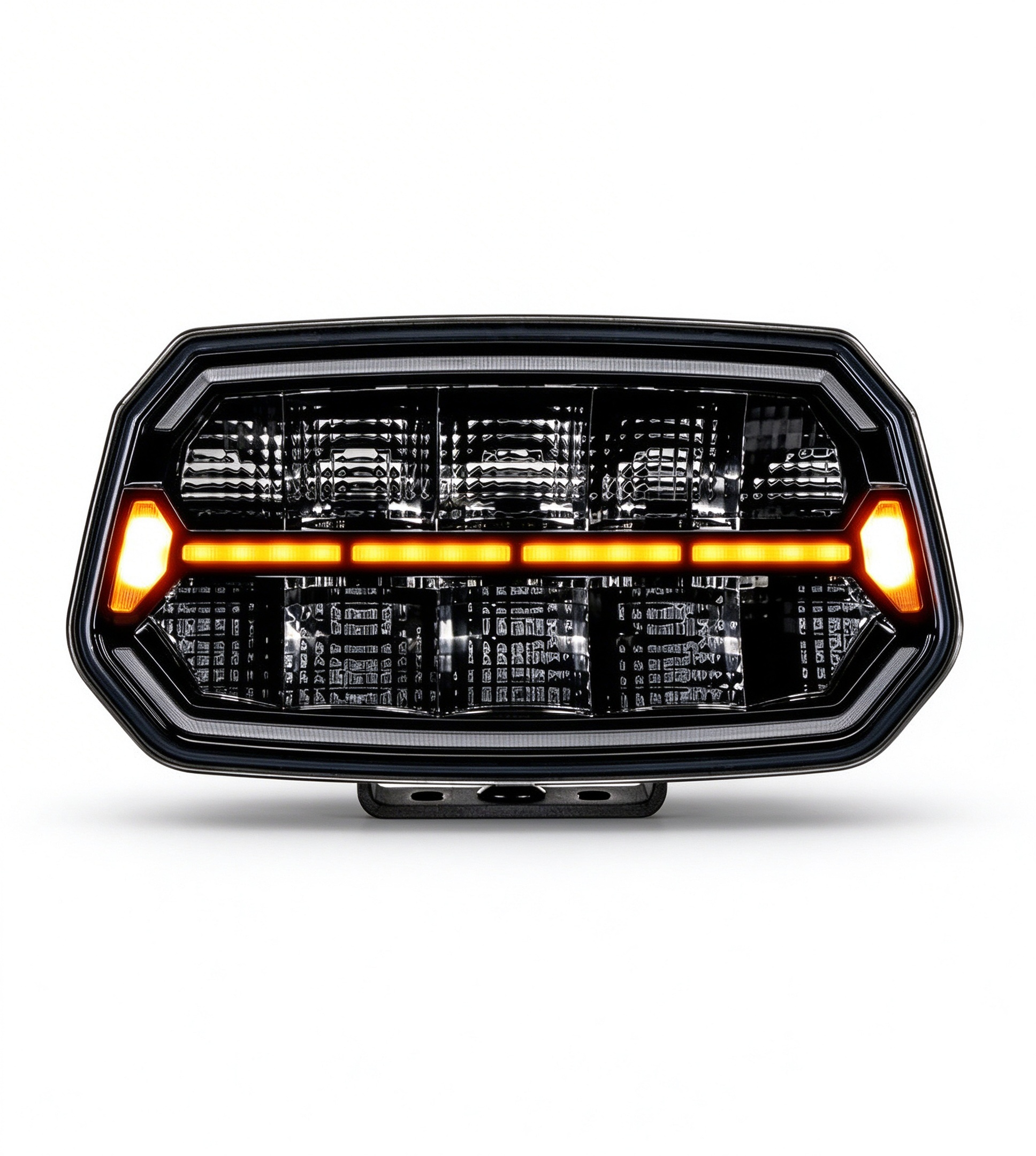

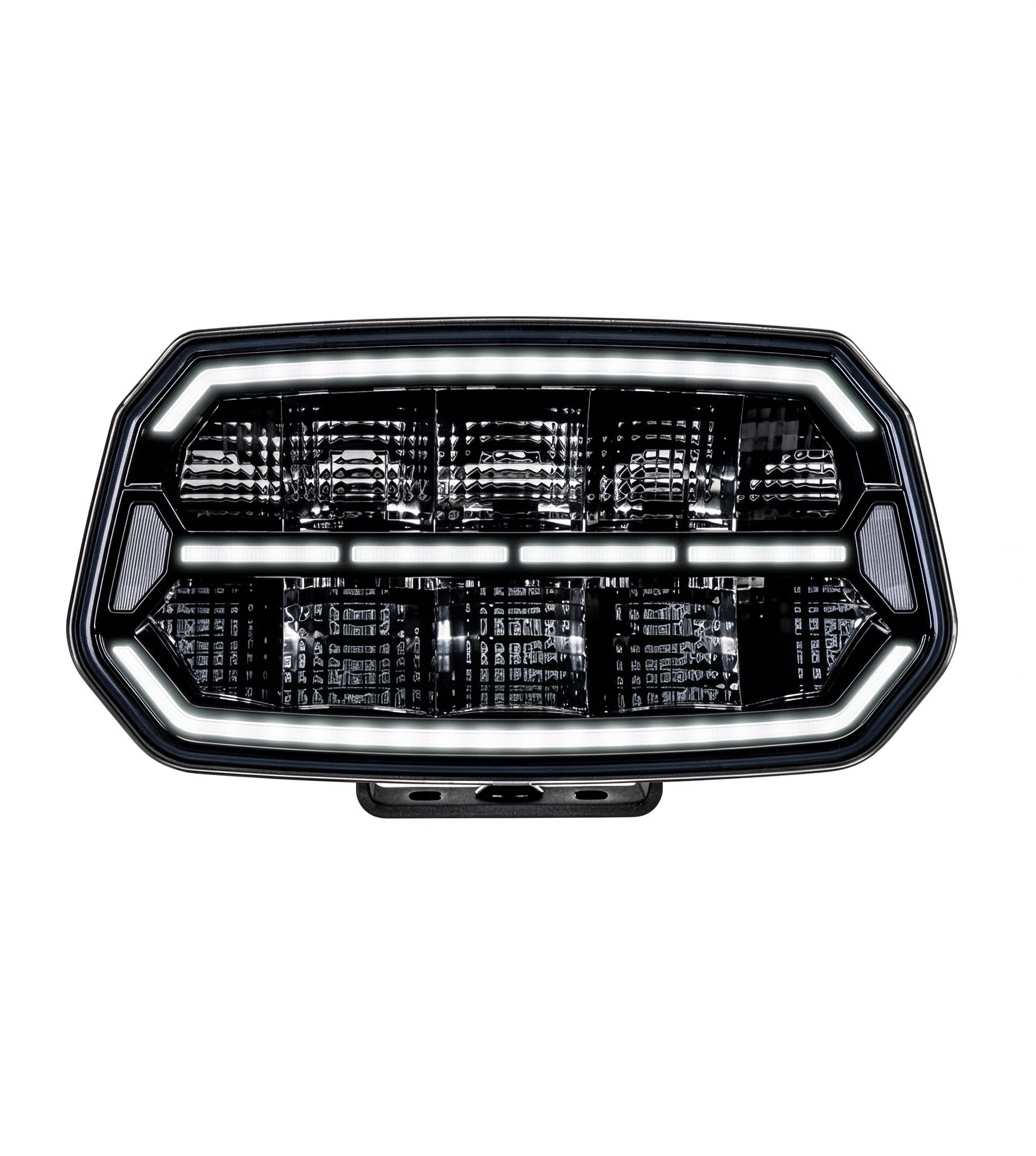

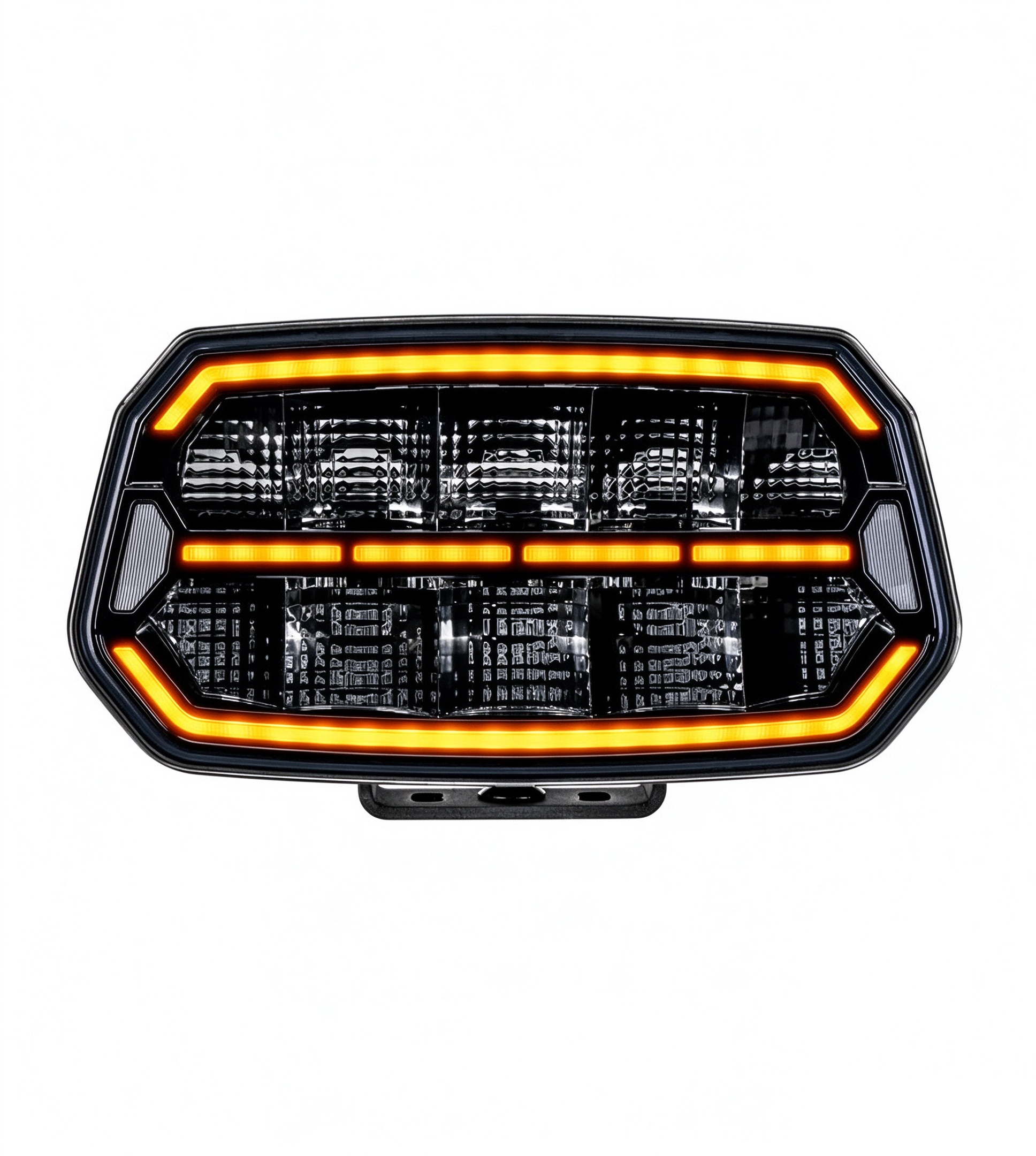

• Selectable position light with dynamic activation (yellow-orange or xenon white, connect the color of your choice)
• Range in E-approved mode: 359 m (1 lux)
• Range in Powerboost mode: 647 m (1 lux)
• Driving beam pattern: Enhances the vehicle's standard high beam pattern
• 11,500 lumens (theoretical), 8,200 lumens (actual)
• Neutral white light: 5000K
• ETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespan
• Side-reflecting optical system
• Pressure equalization membrane

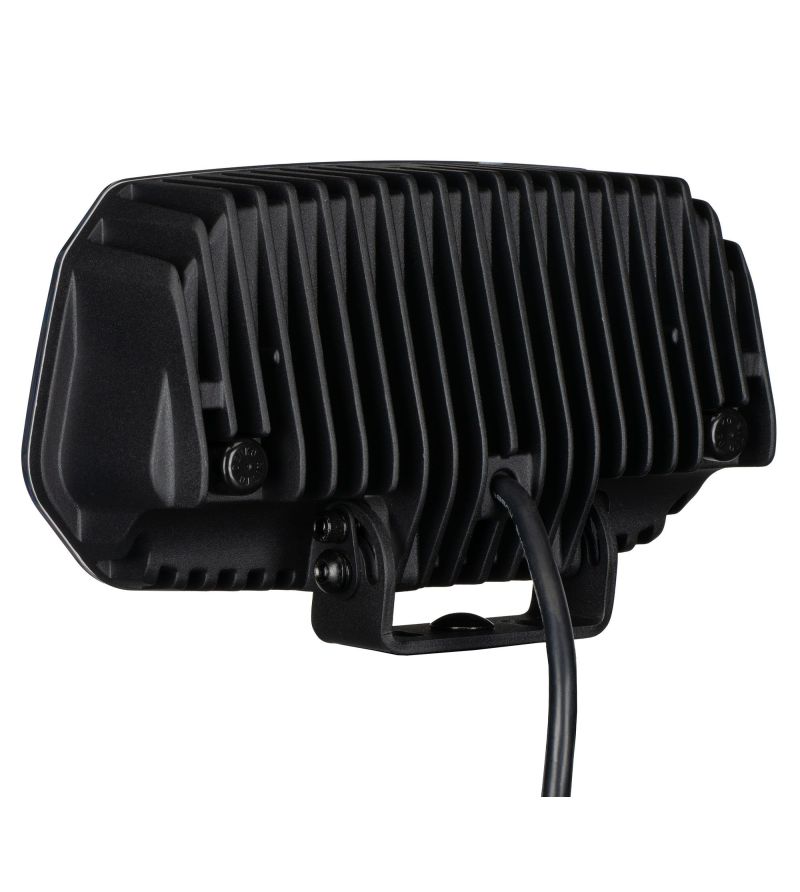

• Aluminum heat sink
• Adjustable stainless steel mount
• Polycarbonate lens

Technical data:

• 150W (10 x 15W Cree LED), strobe lights 20W (4 x 5W LED)
• IP69K (water and dust proof)
• Cable with 6-pin DT Connector
• Voltage: 9-36 V
• Load in E-Approved Mode: 2,2A @ 12V and 1,1A @ 24V (high beam only, no position light)
• Load in High Beam Powerboost Mode: 10,6A @ 12V and 4,8A @ 24V (high beam only, no position light)

Dimensions & Weight:

• Width: 247 mm
• Height: 145 mm (incl. bracket)
• Depth: 86 mm
• Weight: 1,6 kg

Included:

• One light+ Strobe LED auxiliary light 10"
• Mounting bracket, bolts, and screws for single or dual mounting points
• DT Connector (6-pin)

Cable instructions

• Red: Auxiliary light (+)
• Black: Auxiliary light / Position light (- Ground)
• White: Position light (+) White light
• Yellow: Position light (+) Yellow-orange light
• Green: Strobe light (+)
• Blue: Synchronization & pattern (+)
• Brown: Alternating (+)
